Product Description
Levalarm Float Level Switch for pressure up to 1000 PSI.
-
Zero effect from heat, vibration or loss of electrical power
-
Positive interlocking magnet design – proven over 30 years of use
-
Drop-in design requires no adjustments to commission

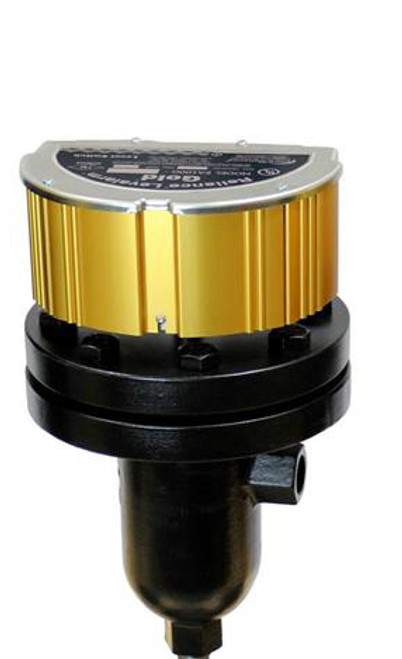

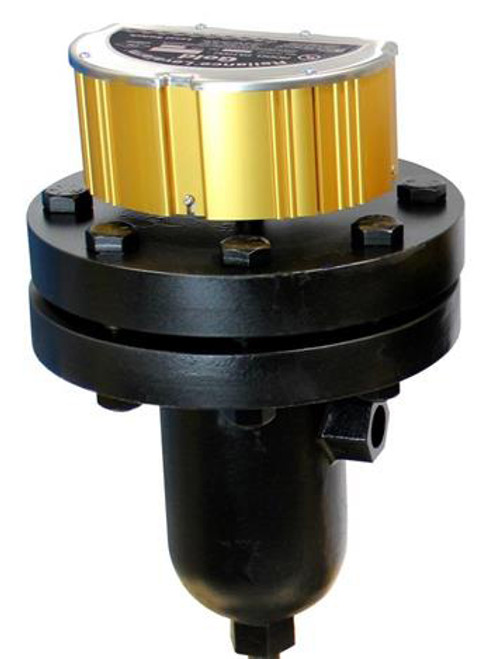

The Levalarm REA100F-1000 float switch represents a major step forward in reliability. It employs a robust dual magnet design with a positive interlock.
UL APPROVED FOR THE FOLLOWING RATINGS:
0.75A @ 120/240 VAC: ONE CONTACT CAN BE LOADED AT A TIME
1.00A @ 28 VDC: BOTH CONTACTS CAN BE LOADED AT THE SAME TIM
0.75A @ 120/240 VAC: ONE CONTACT CAN BE LOADED AT A TIME
1.00A @ 28 VDC: BOTH CONTACTS CAN BE LOADED AT THE SAME TIM
CLICK HERE for the product drawing.
